Palmerston Range

Palmerston range

Prestige Subdivisions, City Communal Areas

Product specifications

The Palmerston offers style and performance to all applications from street lighting to pedestrian areas and carparks. Suitable mounting height 3–10m.

Features

Precisely-positioned, individually directed and controlled LEDs optimise light output while providing desired uniform distribution.

  • Exceptional ease of maintenance via stainless steel over-centre latches
  • Ingress Protection – whole luminaire sealed to IP66
  • Manufactured in New Zealand to comply with AS/NZS1158.6
  • Visors are manufactured from high impact acrylic
  • IK06 rated.(Impact and Knock testing)
  • 10 year warranty
  • NZTA M30 approved

LED features

  • Cree XT-E LEDs
  • Colour temperatures 3000K and 4000K
  • Colour rendering index 70
  • LED module temperature protection
  • Surge Protection 10kV/10kA
  • TMS compatible
  • Philips XITANIUM programmable driver
  • Dimmable
  • All photometric data is produced in an independently audited and accredited Photometric Laboratory, which is accredited by IANZ (International Accreditation New Zealand)
  • LED trays are assembled in a AS/NZS ISO 90001 factory
  • Driver Design Life > 85,000 hours

Upgrade and Repair

  • Removable LED tray enables easy upgrades to newer technologies
  • LED trays can be fitted to legacy HPS products
  • NZ made, product can be repaired locally and replacement parts are available

 IES files avaliable on request.

MATERIALS

  • Body: Spun aluminium
  • Spigot: Zinc plated, paint or powder coated
  • Gear tray: Aluminium polyester powder coated
  • Glazing: High impact clear acrylic
  • Latches: Stainless Steel
  • Seals: Closed cell silicone rubber
  • Finish: Corrosion resistant urethane paint system or polyester powder coated

Options

LED wattages:

  • Standard 21W, 27W, 29W and 33W
  • Reprogrammable for custom Wattages

LED Optics:

  • Standard 7032
  • Optional 7022 Reduced back throw

LED Colour Temperatures

  • 3000K
  • 4000K (Standard)

Mounting:

  • Pendant mounting with a 47mm spigot. (AS/NZS 1158.6:2004)

Colours:

  • Standard colours from our range (other colours available on request at an additional charge)

Other:

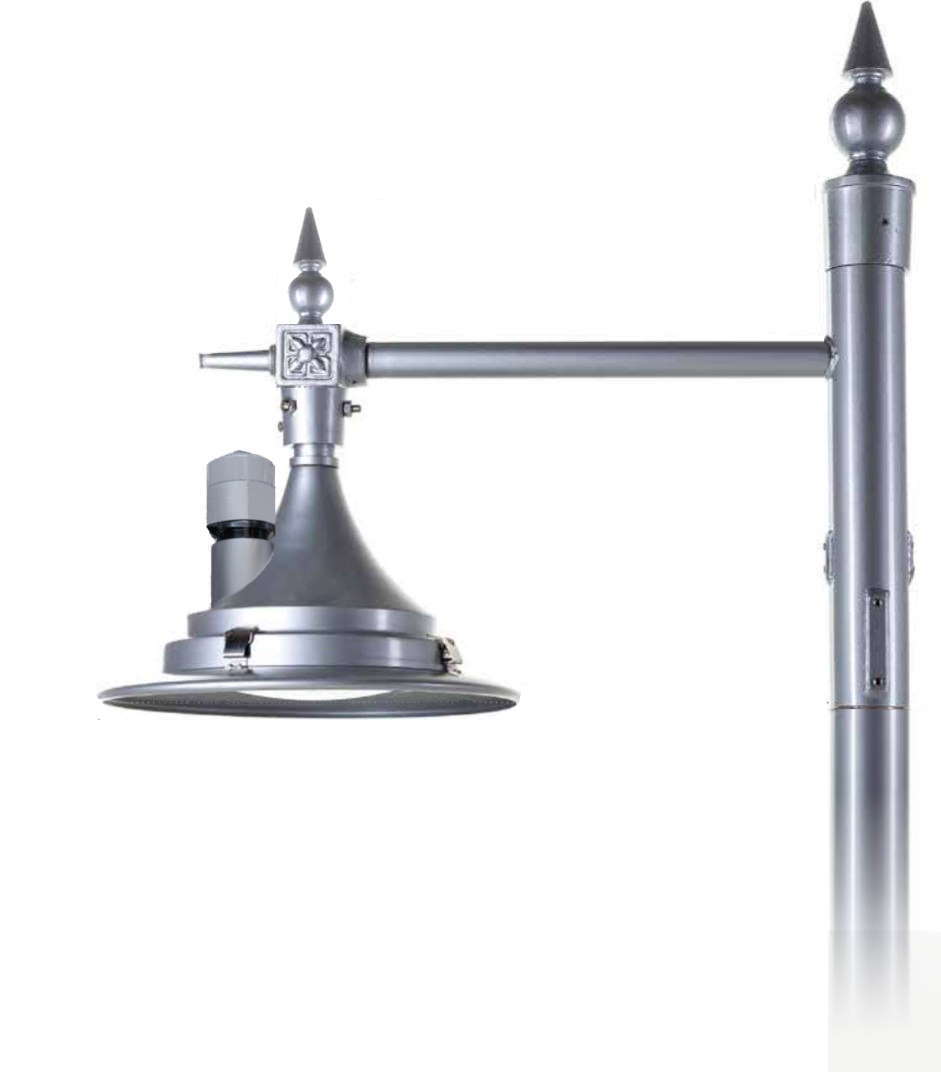

  • 7 pin NEMA base – supplied fitted to pole arm not the lantern
  • NEMA Photocells
  • Autonomous flexible dimming profiles
  • Telemanagement Controllers
  • Miniature photocell can also be fitted

Installation

Available with Easy-fit™ entry connector for ease of installation and accurate luminaire alignment. Exceptional ease of maintenance via stainless steel over-centre latches.

Mounting:

  • Pendant mounting with BSP threaded connector available in a choice of two thread sizes or the 34od easy fit or 47od bayonet connector
  • For pole top mounting see Rolleston
